Bay Pro Models 183, 203 and 220

Bay Pro Models 183, 203 and 220

Bay Pro Models 183, 203 and 220

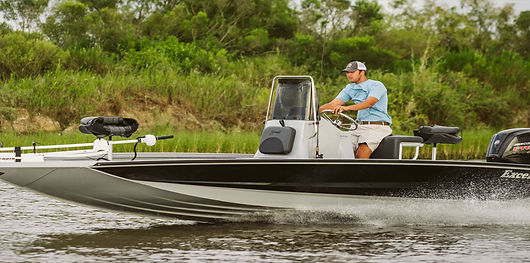

Whether you run southern bays or midwest lakes and rivers, our bay boat can do it all. Our Excel Bay Pro has a great layout, a spacious front and rear deck, plenty of seating, ample storage and lots of room to easily move around.

And, we say the Excel Bay Pro does it all because we are built better. We build the only bay boat with a .160 thick aluminum bay hull, tougher than all the others who use .125 aluminum. Check out our Excel Bay Pro and you will agree, this is a great family and versatile fishing boat.

The Bay Pro’s Excelleration™ Pad Hull is engineered to provide the highest degree of performance, stability, handling and seaworthiness. Meticulous detail differentiates the Excel Bay Pro from others.

Other features include flip-up jump seats with storage, deluxe center console with rod holders, leaning post, two livewells and over 31 cubic feet of storage. Our proprietary low-slip floor coating ensures secure footing and twin floor drains keep it dry. The Bay Pro represents an exceptional combination of performance, functionality, fishability and craftsmanship.

Specs

  • Length:      22' 3"   20' 3"   18' 3"

  • Bottom:      68" 68" 68"

  • Side Height:    25" 25" 25"

  • Transom Height:   21" 21" 21"

  • Beam:  94" 94" 94"

  • Fuel Gallon:     30  30  18

  • Livewell Gallon:     27  27  27

  • Max Horsepower: 200      150      115

  • Capacity:   8/1157       7/1025       5/809

  • Hull Thickness : .160   .160     .160

  • Max Weight:    2020    1787    1532

Features

•Bone White (shown above) or Silver •Superliner (interior rough surface coating) •Excelleration Performance Pad Lifting Hull •Leaning Post w/Cushion and Footrest •Insulated Fish Box on the 220 Bay Pro - Just like the Bay Pro 230 •Extruded Gunwale (w/rubber rub rail and slotted interior for accessory mounting) •2 Built-in Lockable Rod Boxes •12/24/36 Volt Trolling Motor Harness •Integrated Trolling Motor Bracket •Navigation Lights •Bilge - 800GPH •4 Nylon Mooring Cleats •2 Tempress Fishing Seats •2 Rear Folding Jumpseats with Storage •48 Quart Bow Cooler (model 220) •Rear Deck Seatbase •Angled 45 Degree Transom Splash Pan •Front Deck Control Panel (12V Plug, Troll Motor Plug, Nav Light and Motor Trim Switches

Options

•Two-Tone Colors: Blue, Black, Maroon, and Silver •Stainless Package includes Rod Holder, Console Cup Holders, Steering Wheel and Cleats •Full Line of Minnkota Trolling Motors •2 or 3 Bank Charger •Leaning Post Backrest with 3 Rod Holders •Automatic Bilge •Sportsman Power Pole (8') •3 Step Swim Ladder •Rod Box Cushions •Front Deck 15 Gallon Livewell/Baitwell •Seadek Brand Bow and Rear Deck Surface (cushion step) •Recirculating Bait Well •Bay Star and Sea Star (over 150 HP) Hydraulic Steering •6 Gauge Trolling Motor Harness w/Battery Tray (12, 24 and 36 volt options) •Humminbird Helix 5 or Helix 7 Fishfinder/GPS •Jack Plate (6") •CMC and Atlas Hydraulic Jack Plate •Tan Interior with Outside Camo •Recirculating Livewell (console and rear livewell) •Yamaha, Mercury, Suzuki, Evinrude or Honda Outboard

Bay Pro Models 183, 203 and 220
Bay Pro Models 183, 203 and 220
Bay Pro Models 183, 203 and 220
Bay Pro Models 183, 203 and 220

Bay Pro Pad Lift Hull

Bay Pro Models 183, 203 and 220

The Bay Pro pad hull with its many contours outperforms other bay boats. First, it is the only .160 thick hull in the industry - making our boats the toughest. Simply said, the pad hull gets on step quickly and once running, the boat rides on the center low friction flat surface for exceptional speed, while the outside reverse chines trap water for a dry ride and superb handling.

Bay Pro pad hull
Bay Pro Models 183, 203 and 220

Loaded Console

Our bay console has it all. The list is clearly worth mentioning, a removable tinted windshield and stainless grab rail that tip down for low garages, full set of gauges, switches with resetable breakers, 12v plug, mounting space for your fish finder, stainless five-spoke steering wheel w/steering knob and gauge option, optional hydraulic steering, 6 side rod holders and a 16 gallon livewell on the 203 and 220 models, and great storage below with a hinged access door. And, an up front three-tray tackle center built into the console padded seat-back. First class indeed.

Water Resistant Rod/Storage Boxes

The two front lockable boxes hold up to 12 fishing rods, 6 in each. The boxes are designed with a recessed water lip under the cover that channels water away from the box and on to the floor where it drains into the bilge area. This allows you to put rods and other items in the box where they will be guarded from rain and wave splash.

Although these boxes are water resistant, water from high pressure or wash-down pumps can work its way up under the lid and into the box, so please be careful when cleaning.

Bay Pro Models 183, 203 and 220
Bay Pro Models 183, 203 and 220

Insulated Fish Box/Cooler

This boat is flat out loaded with all those things a boat this size should have. Located between the lockable twin rod holder boxes is a convenient step for the bow that has a 45 gallon foam filled insulated livewell/cooler. Holds ice up to 9 hours in 100 degree heat. Your drinks or trophy fish will stay cool and fresh.
