Bass EX 200

Bass EX 200

Tournament ready Excel 20' loaded bass boat.

The new EX 200 redefines the standard in PREMIER aluminum bass boats. Precision welds, painstakingly formed gunwales and an exceptional gloss paint finish give the resemblance of a high-end fiberglass boat. Top-end speed, smooth and responsive handling, and jolting holes shots from the EX 200’s superiorly designed pad hull provide the performance of a high-end fiberglass boat.

​

The EX 200 comes loaded, selecting a model is simple - just choose the:

  • Color

  • Motor (150 to 200 HP)

  • Trolling motor & electronics

Bass EX 200

Specs

  • Boat Length:   20' 3"

  • Approx. Overall Length with Engine and Swing Out Tongue Deployed: 26'

  • Approx. Overall Length with Engine and Swing Out Tongue Stowed (garage): 23'

  • Beam:  94.5"

  • Bottom:      68

  • Side Height:    22"

  • Transom Height:   20"

  • Transom Dead-rise:    14 degree pad hull

  • Bottom Pad Center Width:      12"

  • Fuel:    34 gallon

  • Insulated Step Ice Chest: 21 quarts

  • Fiberglass aft Storage Boxes:      63 quarts each

  • Aft Livewell:     32 gallon

  • Max Horsepower: 200

  • Rod Box (Center)  Rods X: 10 (8')

  • Rod Box (Port)      Rods X: 6 (7.5')

  • Hull Thickness:     0.125 5052 - H32 Alloy

  • Persons and Gear : 4/850 lb.

  • Max Weight (Motor - Person - Gear): 1700 lb.

  • Recommended 200 Horse Props:      Yamaha 22 Sho -Mercury Pro XS 22 Fury

  • Approx Running Weight (200 hp motor, dual console, troll motor, jackplate, 34 gallons fuel)       2750 lb. (not including people)

Features

•We proudly offer the most loaded standard feature boat in the industry. •Today's best value and with superior aluminum boat performance. •Rolled gunwale extrusions with accessory track •Overall length of boat with engine: 23' •Overall length of boat with engine on trailer (tongue stowed): 23' •Overall length of boat and engine on trailer (tongue deployed): 26' •Fuel tank capacity: 34 gallons (under bench seat) •Marine grade closed cell flotation foam •Fiberglass console w/ horn (Driver - reinforced for helm) •Rear 1/4" fiberglass reinforced ABS storage box capacities: 63 quarts/ea •Insulated ice chest capacity (foredeck step): 21 quarts •Divided fiberglass livewell capacity (aft deck): 32 gallons •Center rod box: 8' length (qty 10) •Port rod box: 7.5' length (qty 6) •Bucket helm & passenger seats w/ slides allowing for quick removal of seats off of bench •Bench removes easily from top of fuel tank compartment •Center fold-down seat w/ reinforced backing & tread •1 butt & 1 centric seat w/ fixed & adjustable seat poles •Weather tight compression lid locks on all boxes •Syntec carpet & ReFlex flooring on designated surfaces •Integrated fiberglass bow shroud w/ cup/tool holder for recessed trolling motor foot-pedal - always matches console color •18" Excel branded metal fish slide ruler •Bow panel w/ trim & nav light switches •6 GA trolling motor harness •Fortrex 80 LB 45" Trolling Motor •Humminbird Helix 7 in-dash (Chirp MDI GPS G4) •Flowrite plumbing connections •Aerator & recirc pump •Auto bilge pump (1100 GPH) •Dash panels include: speedometer, tachometer, engine trim, fuel, water PSI, and 1 extra aux gauge hole •3-Bank battery charger •custom tinted windshield(s) •SS flush mounted cleats •SS bow/stern eyes •Toggle switches with reset switch panel •Fuse box for after market accessories •Battery trays: 1 cranking, 2 trolling motor •12V plug on driver console •Quick access perko switch in rigging compartment (right under lid) •SeaStar Hydraulic tilt Steering Helm •Engine & jackplate dual trim blinkers •Atlas hydraulic jackplate •Transport cover •Boarding ladder •Integrated charge port in splashwell (external) •Single tone paint scheme •Carpet trim at bow and stern •Integrated rod buckles (qty 3 - 2 on foredeck, one on running rod rack) •Running rod rack holds 4 rods comfortably •Carpeted removable lid in place of second console, mounted identically •Pop out bulkhead covers under console for port to starboard wiring access & misc. storage without getting in the way •Removable flush mount control access plate - shiny and always matches console color •2 wire ways from driver console to bow •2 full-length wire ways from stern to bow •3 wire ways from driver console to starboard stern •Drain tube from foredeck seat base into bow shroud •Drain tube from bow shroud to stern of boat •Drains in each foredeck box draining to stern •Drains in each outboard aft deck storage box •3 brushed stainless steel cockpit drains •6 brushed stainless steel covers between the 3 foredeck boxes for internal foredeck ventilation •2 brushed stainless steel fuel tank intake ventilation panels under bench seat •2 brushed stainless steel fuel tank exhaust ventilation panels on aft deck rigging lid •Brushed stainless steel horn cover plate on driver console •Console top mounting plate(s) are through-bolted, painted black with metallic clear coat •My-Wedge Excel branded transom saver •Brushed 13.5" Verona steering wheel with Excel Logo on center cap •3 cup-holders: 1 at driver, 1 at passenger, 1 in bow shroud •Key start located on switch panel, allowing more space on console •Pyhi hatch on port corner bracket for ladder and fuel fill access •Bow/Stern Nav lights •2 accent lights in rigging compartment (white in color) •Deluxe graphics package w/ carbon fiber Excel Decals •Bow & stern seat bases •Trailer •C Channel Frame for Ultimate Corrosion Resistance •Black w/Armor Coating •Vortex 3500 Axle w/14" Wheels •Back Lit Excel Laser Cut Steps •Deluxe Covered Winch w/Stoltz Roller •LED Tail Lights w/Backup Light and 7 Way Plug •Swing Away Jack w/Deluxe Oversized Wheel •Vinyl Wrap Bunks

Options

•Mercury, Yamaha Engines •SeaStar foot throttle •LED light package - 2 full length gunwale strips (remote controlled, silicone encased, marine grade, etc.), 4 additional accent lights in foredeck boxes (1 ea in outboard boxes, 2 in center box), 5 RGB-W 1" round LED lights in cockpit (hidden from driver vision) o •Dual Console o- brushed stainless glove box assembly with plastic box attached - Dual 12V & USB ports - Brushed stainless steel plate that matches horn cover plate on driver console - Boat still ships with carpeted lid (from single console boat) and mounts with same mounting plate as dual console, customer can remove console and make into single console seamlessly - allows option of stereo/speakers - only offered with dual console •JBL Stereo w/bluetooth and two JBL 6.5" speakers o •Day box in place of center fold-down seat oShiny, not carpeted - Has reflex pad on lid - Spaghetti mat on inside - 2 cup holders - watertight compression latch - 2 integrated drain c-channels in lid frame - 2 grab handles - Always matches console color •Powerpole 8' and 10' blade (white or black) quantity 1 or 2 •Upgrade to Humminbird Helix 9 or 10 in dash •Helix 7, 9, 10 flush mount in bow shroud •2-Tone paint scheme o- inside/outside different colors - inside color can be 1 of 19 shiny colors we offer - outside color can be 1 of 19 shiny colors we offer •Metallic clear coat oConsole(s), bow shroud, day box (if selected), flush mount plate offered for a less-expensive metallic clear coat option - Entire boat is offered for a more expensive clear coat option •Upgrade to 2 centric seats or two butt seats •Upgrade trolling motor o- Fortrex 52" - Ultrex 45" - Ultrex 52" •Trailer Options •Aluminum Frame •Aluminum Tandem Axle •Single Axle Disk Brake •Alloy Matching Spare •Swing Away Tongue •Built in Ratchet Tie Downs •Front Bow Access Steps •Side Mid Deck Trailer Access Step

EX 200 Logo
EX-200
EX 200
EX 200
Bay Pro Elite 1000
EX 200

The 14 degree Bass EX 200 pad hull with lifting strakes and reverse chine gets on step quickly, rides smoothly and locks solidly into tight turns. With 22" sides and our extra wide deck, this is tournament quality for sure...

EX 200
EX 200

New Pad Hull and Wide Front Deck

When we say our Excel boats have all the right features, in all the right places, we mean it. In addition to the lockable rod lockers, dry storage, and insulated step cooler, the exceptionally wide foredeck of the EX200 comes equipped with an integrated bow shroud that houses a recessed foot pedal and a cup/tool holder.

​The bow shroud has a place for flush-mount electronics with the option to accommodate larger screen graphs with our optional mounts. The bow shroud also has a plug for the trolling motor and switches for navigation lights and main motor trim. The bow cap has an integrated trolling motor mount built into the boat. And to top it off, we have incorporated two 2" conduits that run from the console to the bow cap for wiring, network cables, and NEMA 2000 systems.

Advanced Ergonomic Console(s)

The EX200 may be ordered with a single or dual console. The EX200 console incorporates market-leading ergonomic design. The driver’s console features the following gauges: speedometer, tachometer, trim, water pressure, and fuel.


This console comes with standard hydraulic steering with a tilt helm (with the options of single & dual paddle trims – engine & hydraulic jack plate), switch & reset breaker panels, and room for up to 10” flush-mount electronics.


The driver’s custom bucket seat is adjustable and the motor controls are recessed for maximum comfort. The driver’s console also comes standard with an adjustable footrest equipped with a Syntec Reflex foam pad with a laser etched EX200 logo. The optional passenger console comes equipped with a watertight and lockable glove box. Both consoles come equipped with a tinted sport windshield, USB, and 12V plugs. Two cup-holders & a tool holder is placed conveniently in between both consoles and easily accessible from the driver & passenger seats.

EX 200
EX 200

Unequaled Fit and Finish

The meticulous attention to detail on the EX200 is on par with the high standard on every Excel boat. Quality high gloss finish paint, the use of only the finest components, exceptional and precise panels, lids, consoles, and seating are the standard on the EX200. We shine on the water, in your driveway, and on the road.

Lots of Dry Storage and Rod Storage

The rear deck on the EX200 comes equipped with abundant storage that meets the needs of the weekend warrior as well as seasoned tournament fishermen. The white fiberglass storage boxes are designed with convenience in mind with rounded corners that are easy to clean.



In addition to a roomy dry storage starboard side box we have two huge lockable rod boxes. The center box holds 10 each, 8 foot rods, and the port side box holds 6 each, 7.5 foot rods. The The deck lids have compression gasket lids that help keep water out, and they are lockable to your gear safe.

The storage boxes are weather-tight due to an innovative seal created between the storage area and the lid. As the lid lock compresses it becomes watertight. A large 22-gallon fiberglass live-well is finished with an aluminum splash guard and is divided into two separate compartments by a 0.500” thick polymer divider. The live-well is topped off with two locking lids that open aft. The live-well system is equipped with a high-speed pick-up, timer, aerator, and recirculation pump.

EX 200
EX 200
EX 200

Tilt Steering and Paddle Shifter/Trim

A popular addition to the EX200 is our convenient tilt steering fitted with ergonomically positioned paddle trim and jackplate height adjustments. The twin turn-signal like levers make it quick and easy to adjust the best ride and performance from your EX200.

Integrated Insulated Cooler Step

The cockpit of the EX200 is furnished with a convenient, insulated cooler, which serves as a step from the cockpit up to the foredeck. The lid for the cooler comes complete with a Syntec Reflex pad to top off the cockpit with an aesthetically appealing look and provides traction for the customer when traversing through the cockpit onto the foredeck.

EX 200
EX 200

Custom Foam-Fitting Seats

On long runs to the fishing hole and in inclement weather, comfort is the #1 goal. Form-fitting custom bucket seats ensure unbeatable comfort. EX200 seats are firm and precisely contoured to fit people of all sizes. The high-performance design keeps you locked in on tight turns, jolting hole shots and the high speeds the EX200 dishes out. A movable, padded footrest protects your feet, especially on long runs in rough water.

An adjustable driver’s seat allows the driver to commandeer the boat with ease and utmost comfort. A middle fold down seat is located between the two bucket seats as is a grab bar and custom-made dual cup & tool holder. The back of the fold down seat is covered with a non-skid pad. When folded down it serves as a step from the cockpit to the rear deck. Located between the driver and the middle seat is an 18” golden ruler.

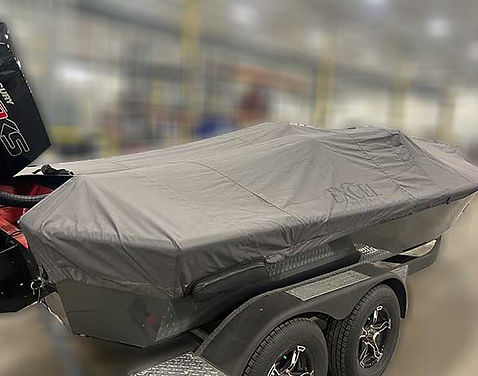

Optional Custom Fitted Cover

The EX 200 optional cover is a necessity when storing your investment. The all weather material is form-fitted with a ratchet tension system built into the cover perimeter. It quickly installs, cinches down and protects your boat for years to come.

EX 200
EX 200

Integrated One Boat Network - Electronics

The Excel EX 200 bass boat is designed to support the one boat network system of electronics, trolling motor and position locking. Meaning, we have pre installed large 2" tubing dedicated to running wires for transducers, network cables and NEMA 2000 systems from the bow to console and console to transom power sources. These ensure easy rigging of fish finders, trolling motors, transducer brackets and all required accessories with network cables and NEMA 2000. The dash accommodates chart plotters up to 10" built in and larger with optional mounting brackets. Front deck takes all sizes of chart plotters, up to 10" built in and other arrangements with optional multi-graph mounts.

Troll Motors

Your boat is rigged standard with a Minn Kota Fortrex 45" trolling motor. Minn Kota considers its trolling motors to be the strongest bow-mount system in the world. They have a bow guard 360 degree breakaway mount, streamlined recessed heel-toe foot pedal, are easy to use and ergonomically designed. The unit has speed control and momentary on/off. The exclusive Digital Maximizer provides 5 times longer run time.



The prop is 100% weedless and pushes the weeds away. The lighted directional indicator on the head unit quickly show the motor position.



Minn Kota Fortrex 45" 80lb - Standard Equipped



Upgrades Available:

Minn Kota Fortrex 52" 80lb

Minn Kota Ultrex iLink MDI 52" 80lb

Garmin Force 50"

EX 200
